Scraper Type
Chip Conveyor
with Drum Filter

Developed for Coolant Filtration and Chip Separation in
Machining Processes. This system is designed for efficient
chip handling and liquid filtration in metalworking operations.
It is suitable for transporting all types and shapes of
metal chips shorter than 2 cm, and provides high-precision
filtration of cutting fluids within a range of 150–250 μm,
depending on process requirements.
Ideal for maintaining clean coolant circulation and extending
the life of both machinery and coolant.

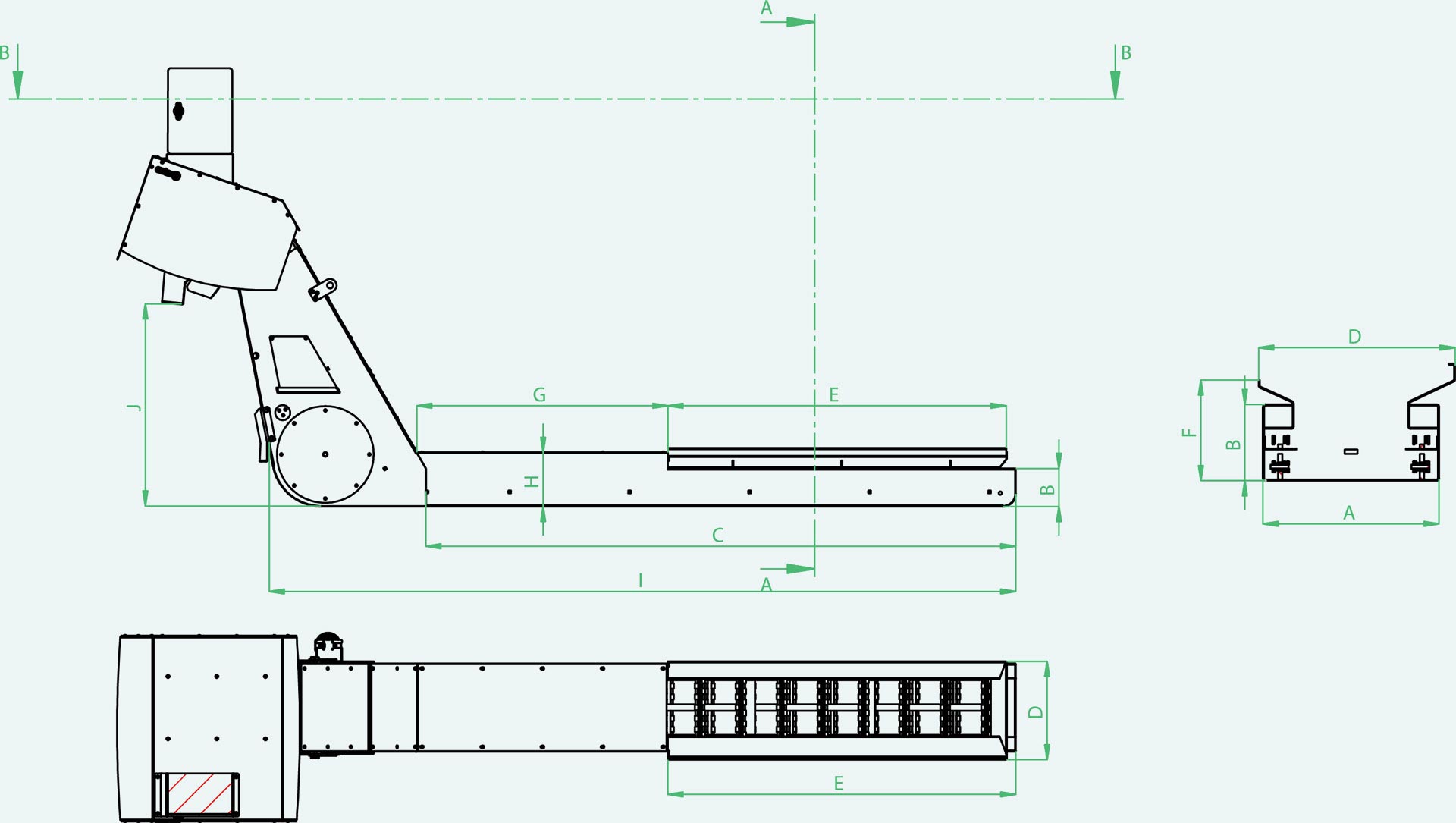

Technical Specifications Technical Specifications

astoreurope-Scraper-Type-Chip-Conveyor-with-Drum-Filter

Görüntüler Yükleniyor...

Döndürmek için sağa/sola kaydırın

General Features

Integrated Filtration System: The drum filter removes fine particles from coolant carried with the chips, ensuring continuous clean fluid recovery.

Scraper Operation Principle: Chips are collected by scraper blades along the tank bottom and directed to the drum filter, preventing chip accumulation.

High Filtration Precision: Provides micron-level filtration, especially effective for fine particles produced during machining of cast iron, steel, and aluminum.

Compact and Modular Construction: The conveyor and filtration unit are designed as one integrated body for easy CNC machine integration.

Energy Efficiency: Efficient drum motor and drive system ensure low power consumption with high chip handling performance.

Standard Equipment:

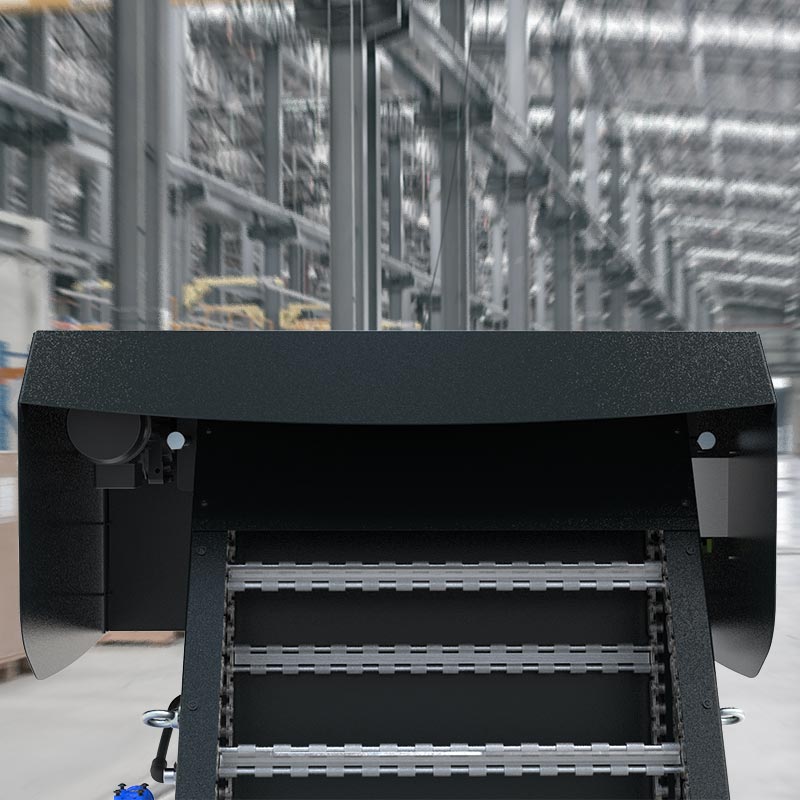

Conveyor Scraper Unit

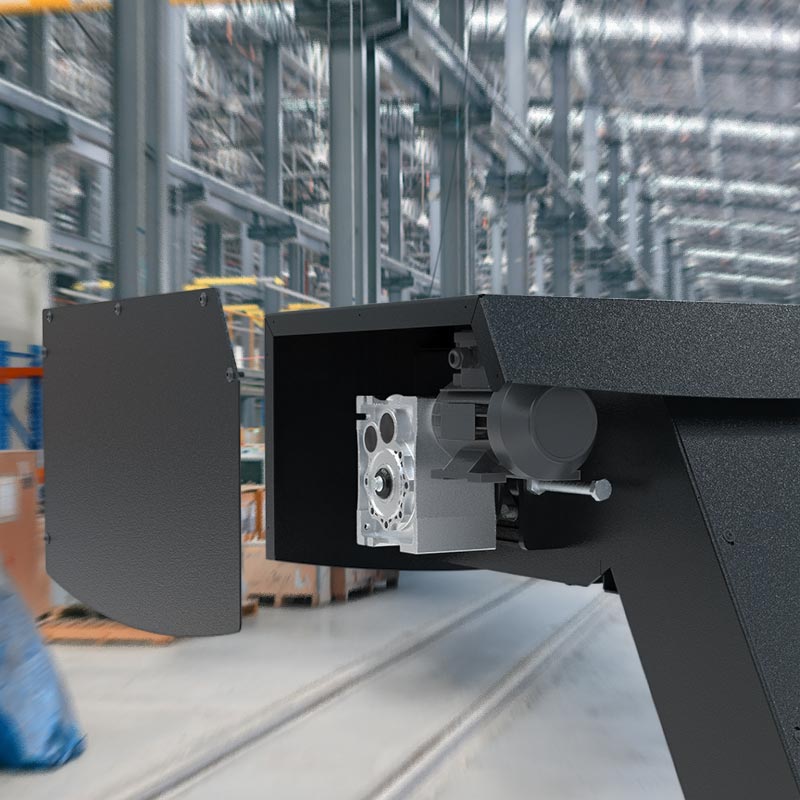

Drive Motor

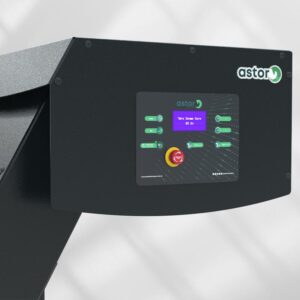

Control Panel

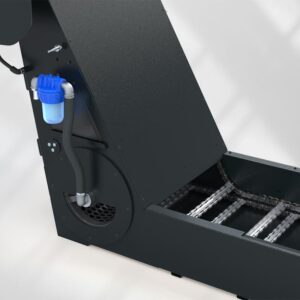

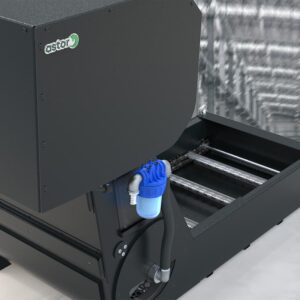

Drum Filter Unit

Drum Filter Washing Pump

Nozzle Filter

Electrostatic Powder Coating

Astor Europe

We are here with solutions that suit your needs.

Hinged Belt Chip Conveyor

Go to product

Scraper Belt Chip Conveyor

Go to product

Tank-Type Hinged BeltChip Conveyor

Go to product

Scraper Type Chip Conveyor with Drum Filter

Go to product

FAQ’S

Frequently Asked Questions
Scraper TypeChip Conveyor with Drum Filter

What types of chips is this conveyor designed for?

This system is ideal for fine, short, powder-like chips and small particles carried in coolant. It performs exceptionally well with cast iron, steel, stainless steel, and aluminum chips.
What are the advantages of the drum filter?

The drum filter provides micron-level filtration, removing fine contaminants from coolant. This significantly increases coolant quality and protects pumps and precision machine components.
Is this conveyor compatible with central filtration systems?

Yes. It is fully compatible with centralized filtration units, level sensors, pressure sensors, and flow-control automation systems.
Is maintenance difficult?

Not at all. Scraper inspection, and general cleaning are fast and simple. The system is engineered for long-term, low-maintenance operation.
Which machines is it compatible with?

It is compatible with CNC machining centers, lathes, grinding machines, and other high-performance machining processes requiring advanced filtration.
