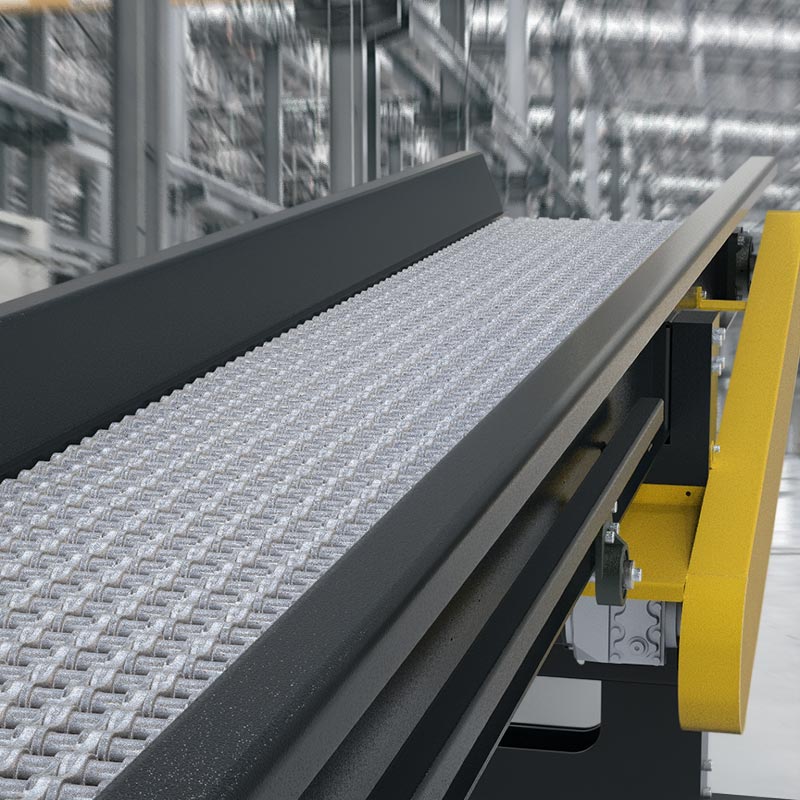

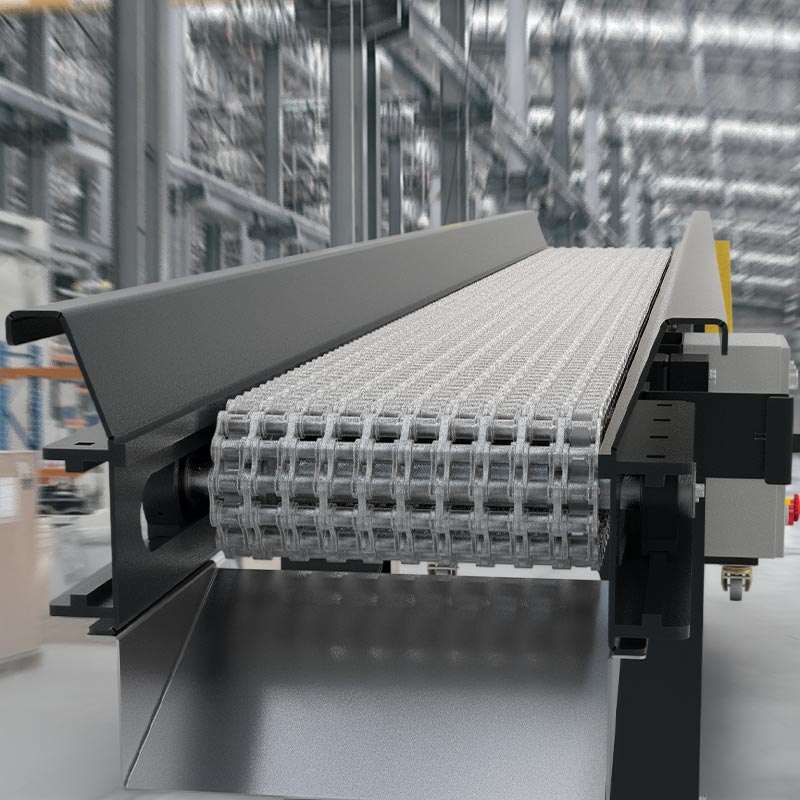

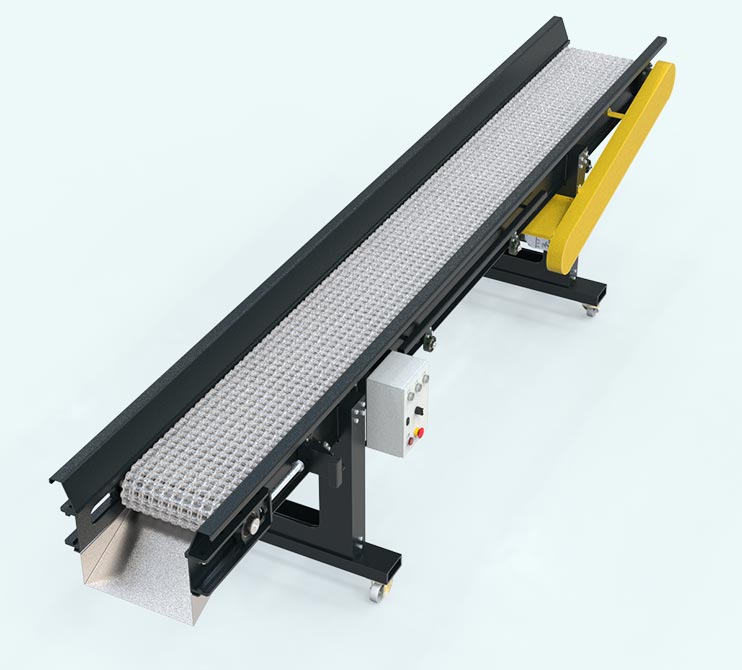

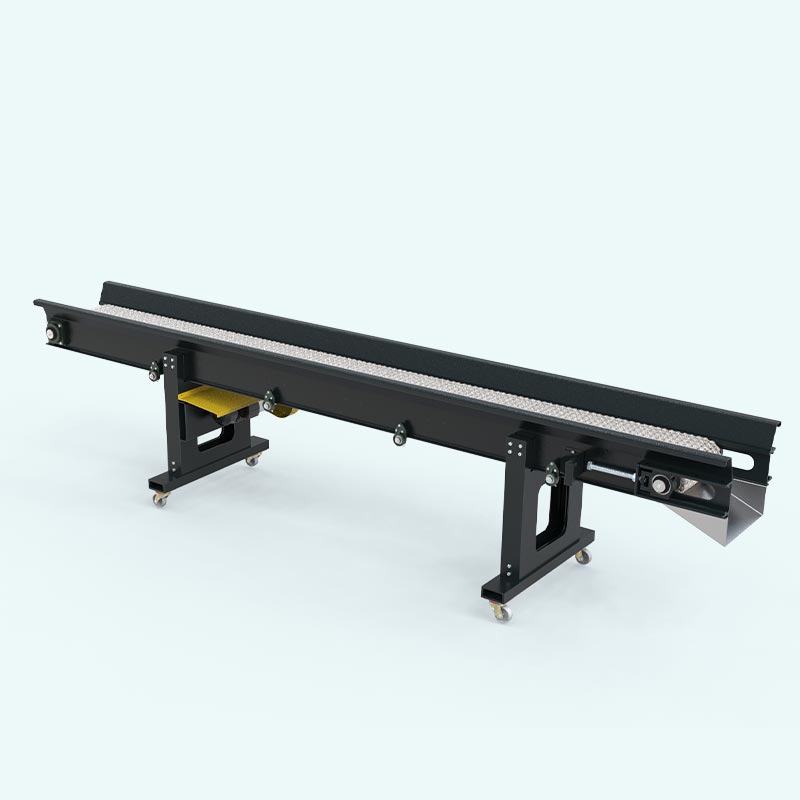

Hot Part
Transfer Conveyor

It is designed for transferring hot parts between
manufacturing units.
The system is custom-designed based on the
shape and quantity of the parts to be transported.

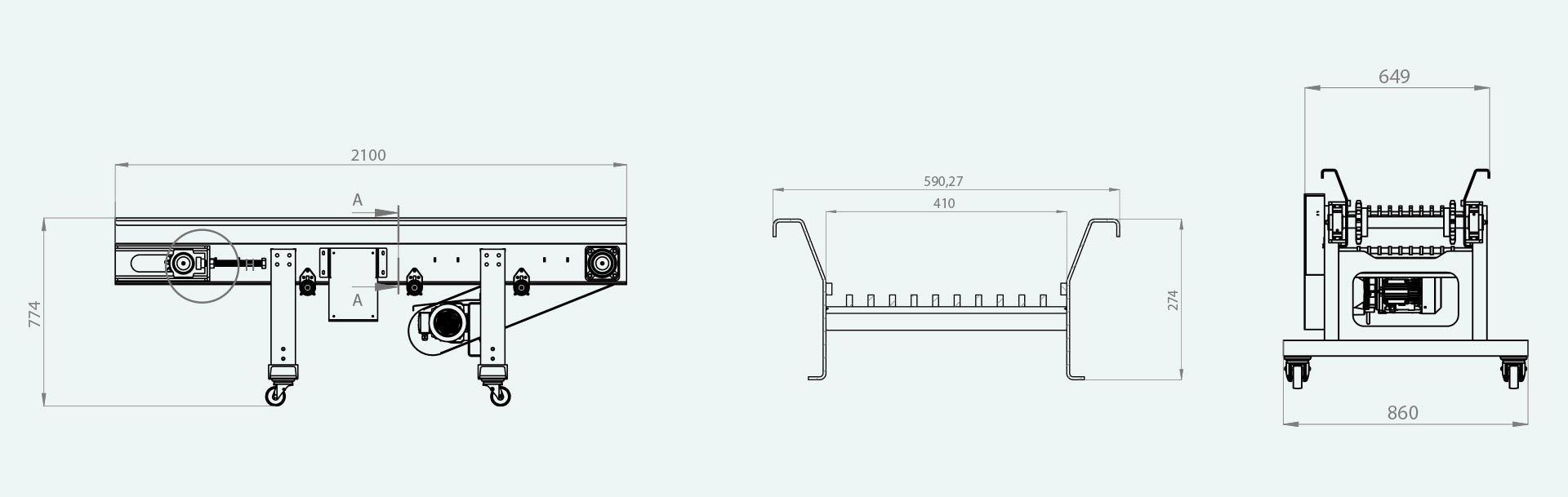

Technical Specifications Technical Specifications

Görüntüler Yükleniyor...

Döndürmek için sağa/sola kaydırın

General Features

High Temperature Resistance: Designed to transport hot metal parts ranging from 300°C to 900°C, using heat-resistant steels and refractory materials.

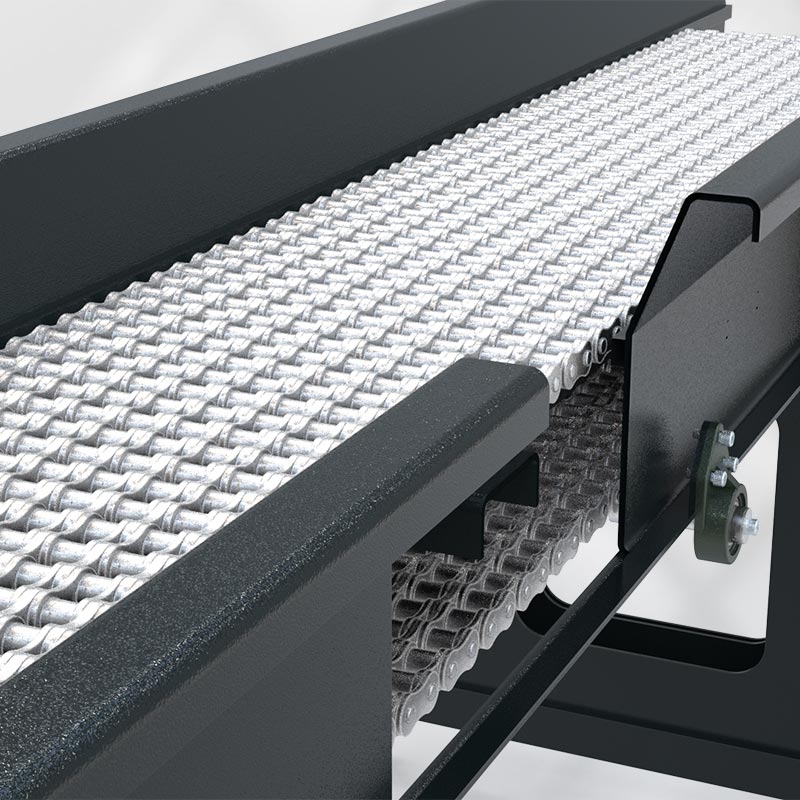

Special Conveyor Chain and Surface Coating: Equipped with high-temperature chains and anti-slip surfaces to prevent elongation, deformation, or structural fatigue under extreme heat.
Full Compatibility with Furnace – Press – Induction Lines: Seamlessly integrates into heat treatment furnaces, induction heating units, forging presses, and hot working stations.
High Wear Resistance: Reinforced structure protects against oxidation, scale buildup, thermal shock, and abrasive wear caused by hot metal pieces.
Safe Operation: Eliminates the risk of parts falling, bouncing, or contacting operators. Fully compliant with industrial safety standards.
Fixed or Adjustable Speed Control: Available with fixed-speed or inverter-controlled adjustable speed for synchronization with production flow.
Optional Servo-Driven Sorting: Servo-controlled diverter mechanisms can be added for distributing parts to multiple workstations.
High Load Capacity: Engineered to carry both small components and large forged workpieces with stable performance.
Built for Harsh Industrial Environments: Suitable for continuous operation in forging plants, rolling mills, heat treatment lines, and hot forming processes.

Standard Equipment:

Conveyor Pallet

Drive Motor

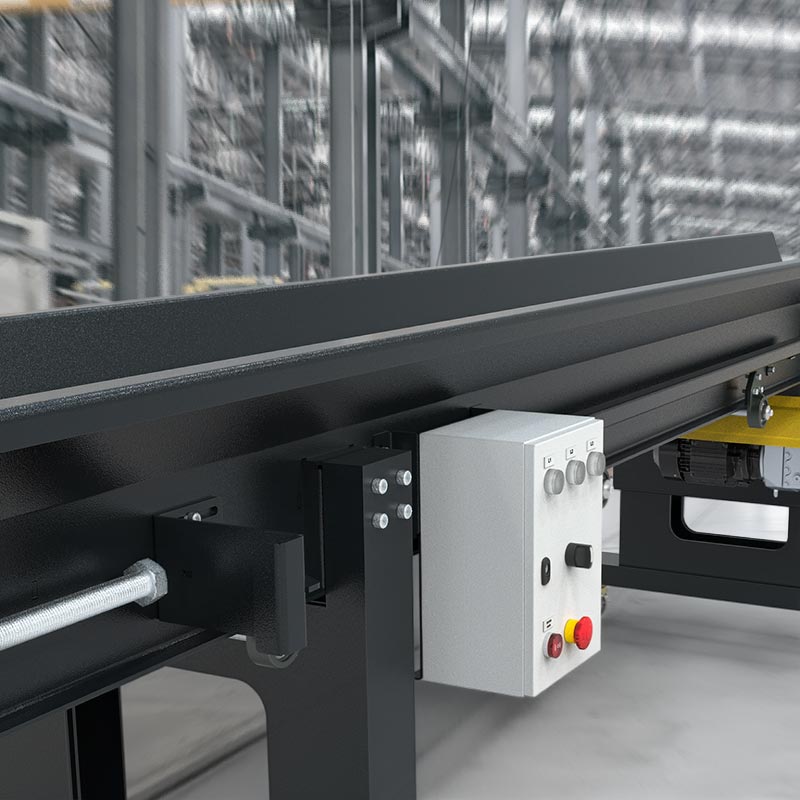

Control Panel

Conveyor Support Legs

Electrostatic Powder Coating

Astor Europe

We are here with solutions that suit your needs.

Hinged Belt Chip Conveyor

İncele

Scraper Belt Chip Conveyor

İncele

Tank-Type Hinged BeltChip Conveyor

İncele

Scraper Type Chip Conveyor with Drum Filter

İncele

FAQ’S

Frequently Asked Questions
Hot Part Transfer Conveyor

What temperature range can the conveyor handle?

Depending on the application, the system is typically designed for transporting hot metal parts between 300°C and 900°C. Higher temperature options can be manufactured upon request.
Does high temperature affect the chain or conveyor surface?

No. The chains and surface plates are made from heat-resistant steel alloys that prevent elongation, deformation, or fatigue under extreme heat.
Which production lines is it compatible with?

Heat treatment furnaces Forging presses Induction heating lines Hot forming cells Post-casting hot transfer lines
How is operator safety ensured during hot part transfer?

Side walls, guides, anti-slip surfaces, and optional enclosed structures prevent hot parts from falling, bouncing, or coming into contact with operators.
Is speed adjustable?

Yes. Fixed speed, inverter-controlled variable speed, and servo-controlled speed options are available depending on production requirements.
Can the system carry heavy parts?

Absolutely. The conveyor is designed for high load capacity and can safely transport forged components, billets, and heavy metal blocks.
What are the maintenance requirements?

Maintenance is minimal thanks to heat-resistant bearings, chains, and lubrication systems. Periodic inspection and cleaning are typically sufficient.
Is the conveyor resistant to harsh industrial conditions?

Yes. It is built to withstand the heat, scale formation, abrasion, and mechanical stress commonly found in forging and induction heating environments.
Can the conveyor be customized?

Yes. Length, discharge height, speed control, diverter mechanisms, and sensor integrations can be fully customized to meet specific production needs.
Is international service support available?

Yes. Astor Europe provides installation, maintenance, and spare parts support worldwide through its international service network.
